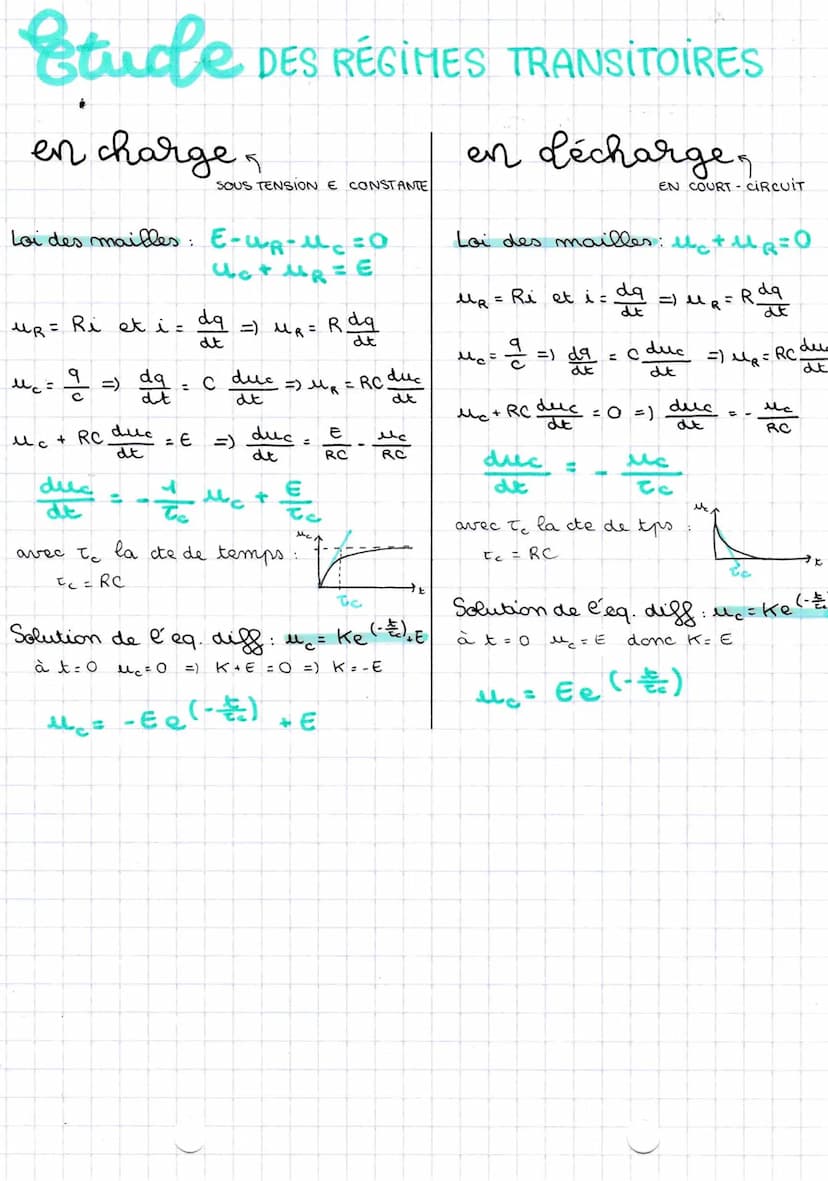

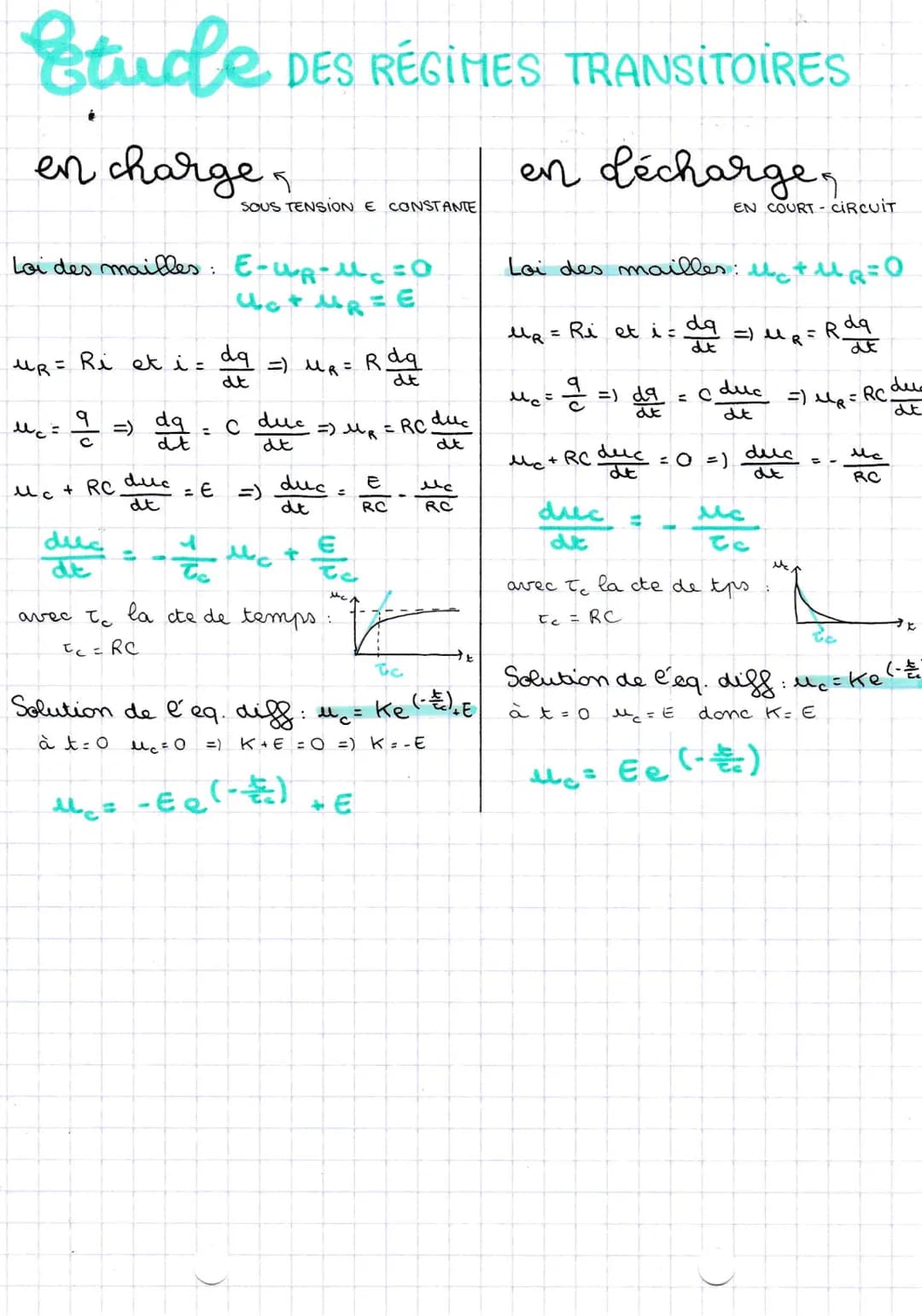

Page 2: Mathematical Analysis of RC Circuits

This page delves into the mathematical analysis of RC circuits during charging and discharging phases, focusing on differential equations and time constants.

Definition: The time constant (τ) in an RC circuit equals RC, determining the rate of charging or discharging.

Highlight: The charging process follows the equation Uc = E(1-e^(-t/RC)), while discharging follows Uc = Ee^(-t/RC).

Example: When analyzing the circuit using mesh law (loi des mailles):

• During charging: E - UR - Uc = 0
• During discharging: UR + Uc = 0

Vocabulary:

• Mesh Law (Loi des mailles): Sum of voltages around a closed loop equals zero
• Time Constant (τ): Product of resistance and capacitance (RC)

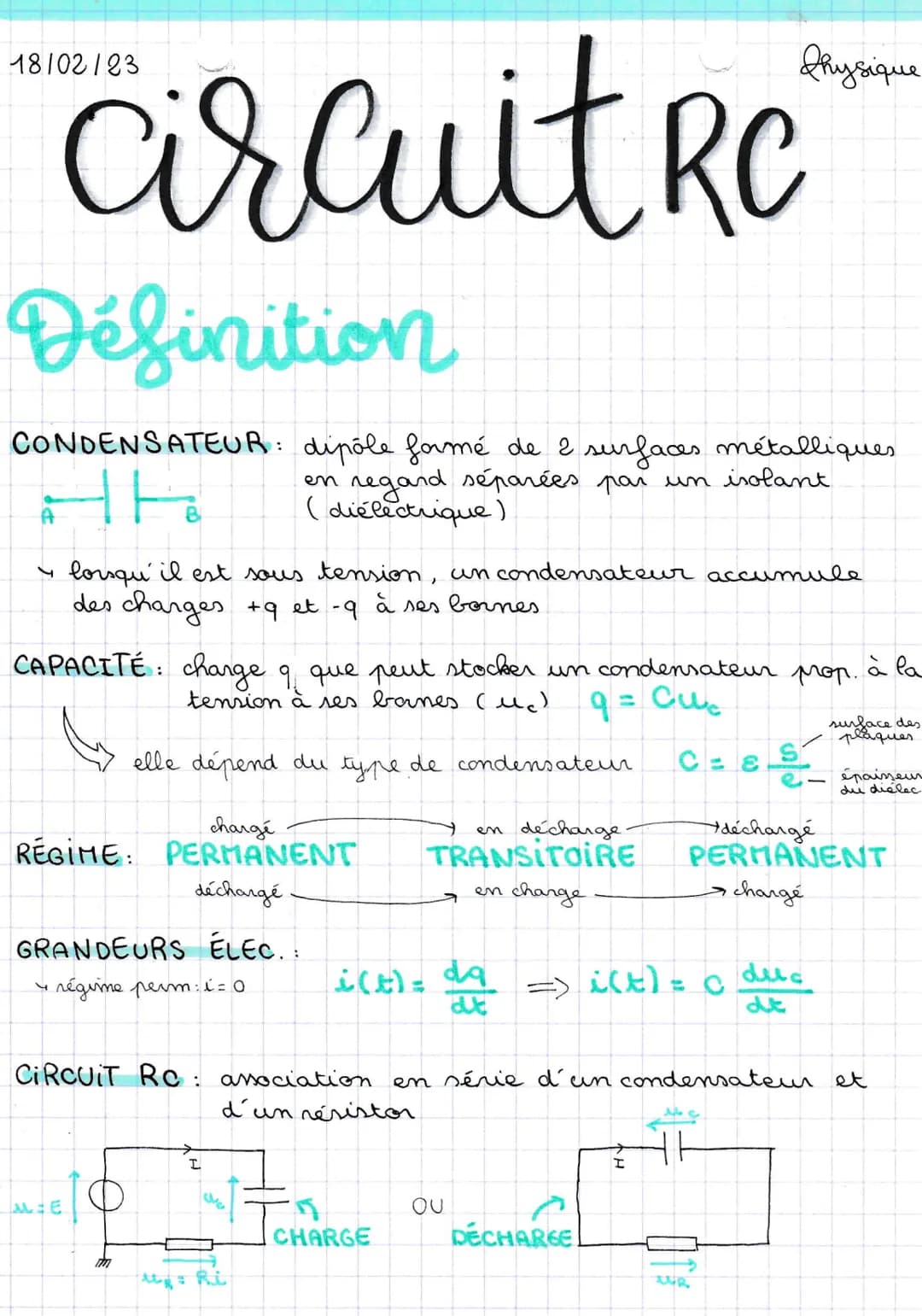

Page 1: Fundamentals of Capacitors and RC Circuits

This page introduces the basic concepts of capacitors and their behavior in electrical circuits. The content focuses on the physical structure of capacitors and their fundamental properties in both charging and discharging states.

Definition: A capacitor is an electrical component consisting of two metallic surfaces separated by an insulating material (dielectric).

Vocabulary:

• Capacitance: The ability of a capacitor to store electric charge
• Permanent Regime: State where current is zero
• Transient Regime: State during charging or discharging

Highlight: The relationship between charge and voltage is expressed as q = CUc, where C represents capacitance.

Example: In an RC circuit, the capacitor is connected in series with a resistor, demonstrating the fundamental relationship between resistance and capacitance.
