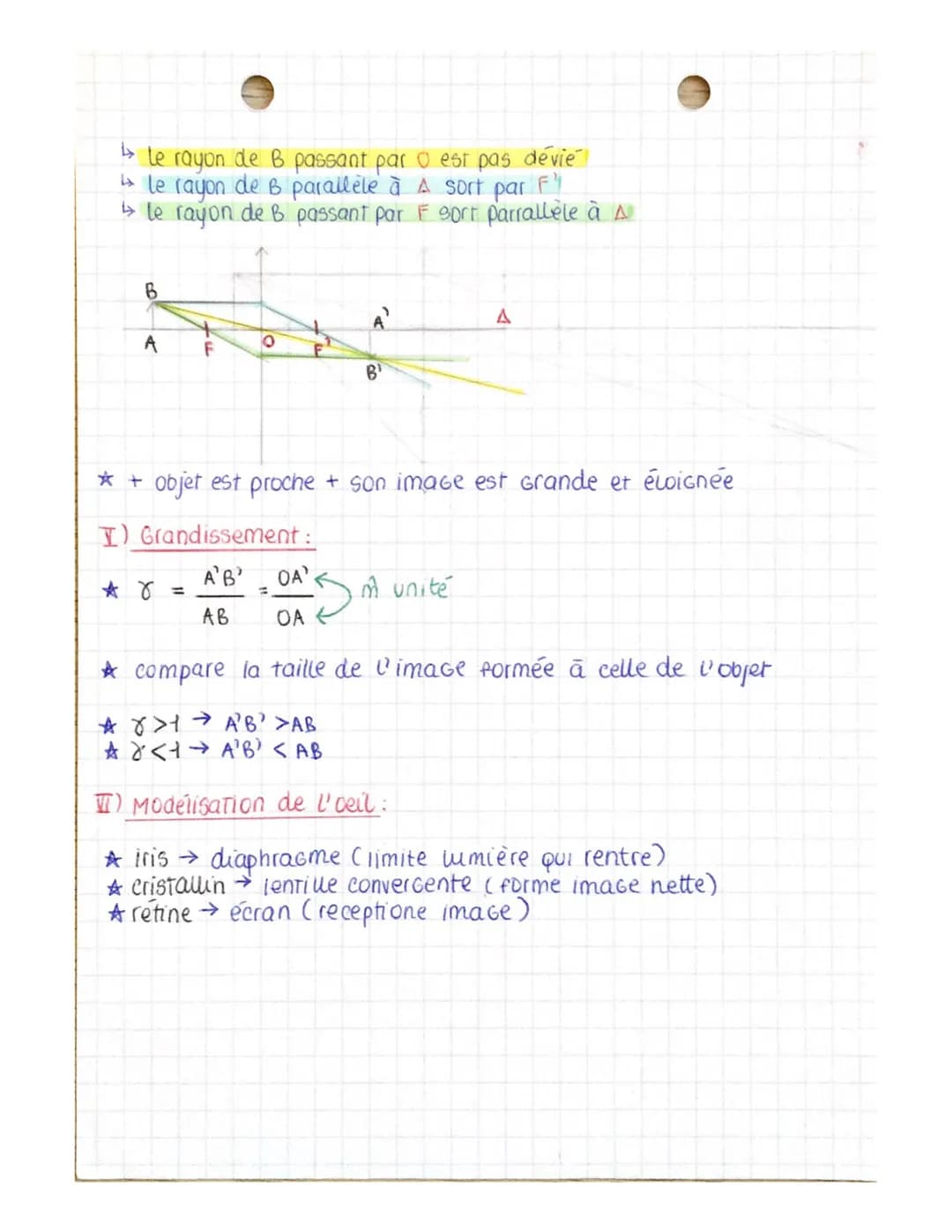

Image Construction and Eye Modeling

This section details the process of image construction using converging lenses and explains their application in modeling the human eye.

Definition: Magnification $m$ is the ratio of image size to object size, expressed as m = A'B'/AB = OA'/OA.

Highlight: The closer an object is to the lens, the larger and more distant its image becomes.

Example: The human eye can be modeled using the following components:

• Iris functions as a diaphragm controlling light entry
• Crystalline lens acts as a converging lens forming clear images
• Retina serves as the screen receiving the formed image

Vocabulary:

• Diaphragm: A mechanism that controls the amount of light entering an optical system
• Crystalline lens: The natural lens in the eye that focuses light onto the retina

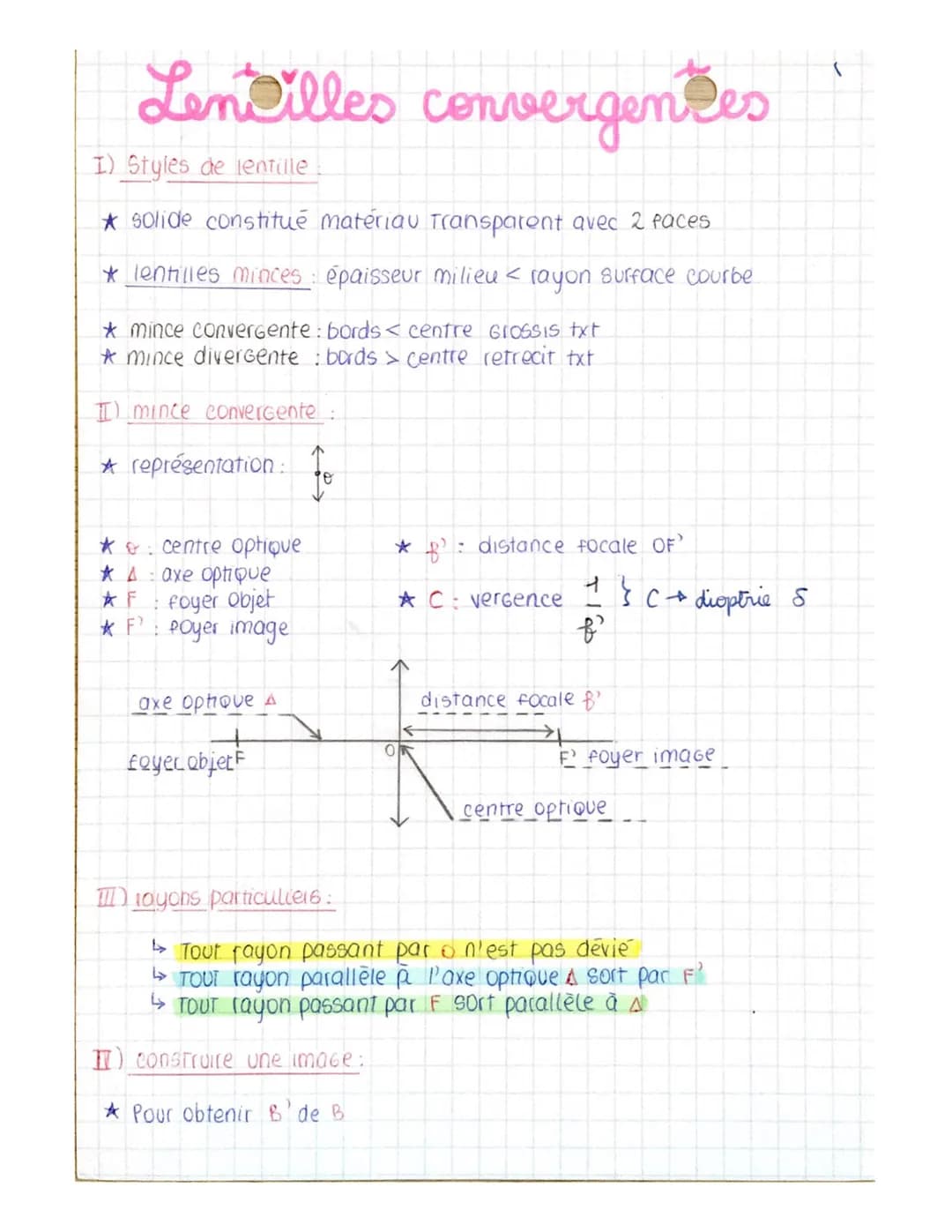

Understanding Converging Lenses: Basic Properties

This section explores the fundamental characteristics of converging lenses and their physical properties. The content covers lens types and their basic structural elements.

Definition: A converging lens is a transparent solid with two curved surfaces where the thickness at the center is greater than at the edges.

Vocabulary:

• Optical center (O): The central point through which light rays pass without deviation
• Optical axis: The primary line passing through the center of the lens
• Focal points (F and F'): Points where parallel rays converge after passing through the lens

Highlight: The focal length (f') is a crucial measurement that determines the lens's power, measured from the optical center to the focal point.

Example: Thin converging lenses can be identified by their characteristic shape - thicker in the center than at the edges, causing text viewed through them to appear magnified.
