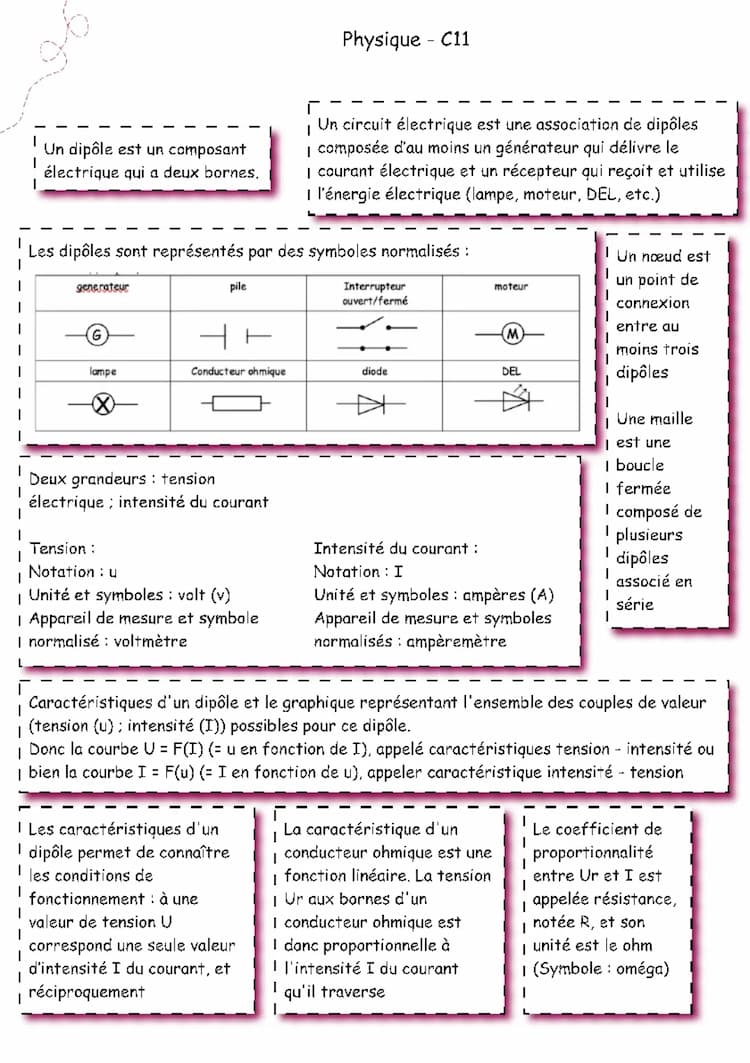

Electrical Laws and Formulas

This page delves into important electrical laws and formulas that govern the behavior of circuits. The main focus is on Ohm's law and Kirchhoff's current law (loi des nœuds).

Ohm's Law: The page presents Ohm's law, which relates voltage, current, and resistance in an electrical circuit.

Definition: Ohm's law states that the voltage across a conductor is directly proportional to the current flowing through it, given that the temperature remains constant.

The formula for Ohm's law is given as:

U = R × I

Where:

• U is voltage in Volts (V)
• R is resistance in Ohms (Ω)
• I is current in Amperes (A)

Highlight: Ohm's law is fundamental in electrical engineering and is used to calculate any of the three quantities when the other two are known.

Kirchhoff's Current Law (Loi des nœuds): The page also introduces Kirchhoff's current law, which is crucial for analyzing circuits with multiple branches.

Definition: Kirchhoff's current law states that the sum of currents entering a node in an electrical circuit is equal to the sum of currents leaving that node.

The law is expressed mathematically as:

I = I₁ + I₂

Where I is the total current, and I₁ and I₂ are the currents in individual branches.

Example: In a circuit with one input current and two output branches, if the input current is 5A and one branch carries 3A, the other branch must carry 2A to satisfy Kirchhoff's current law.

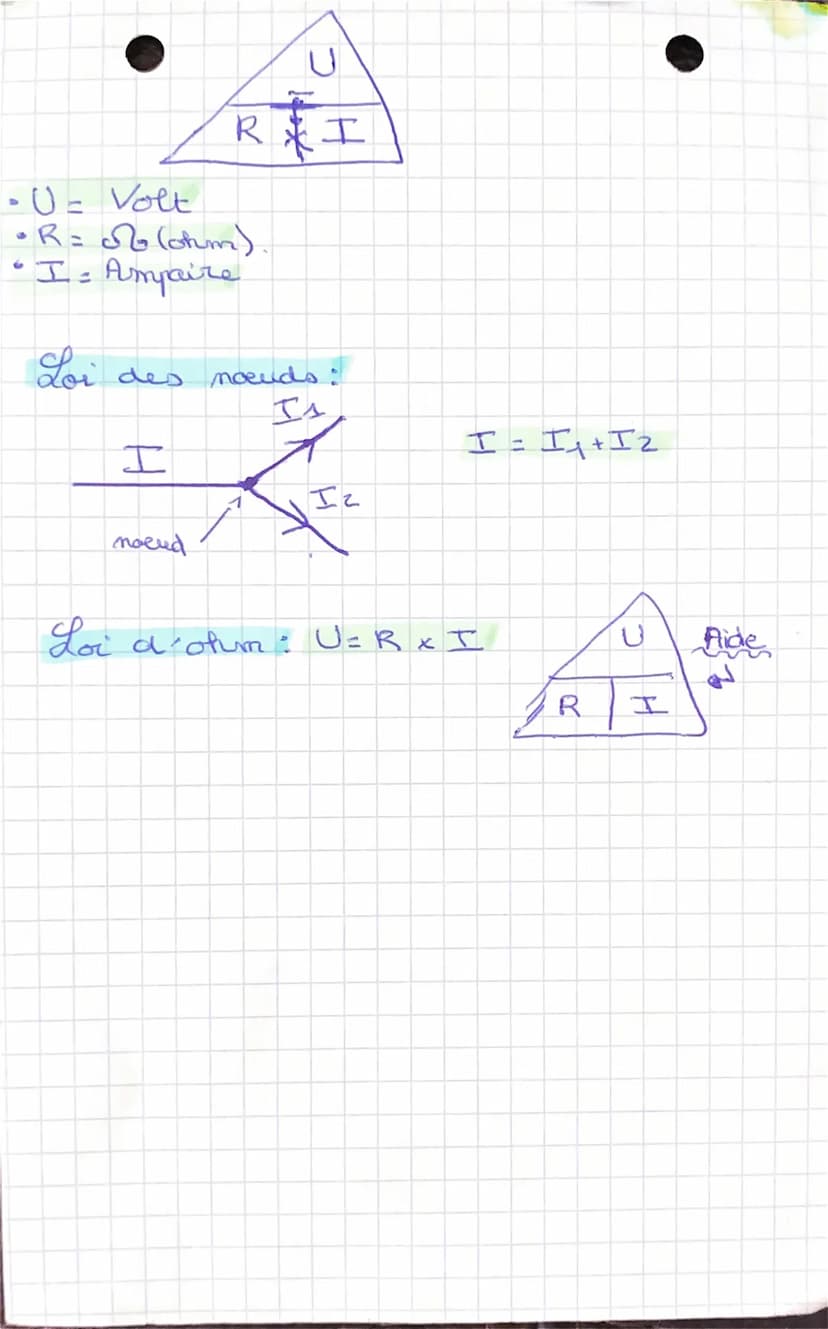

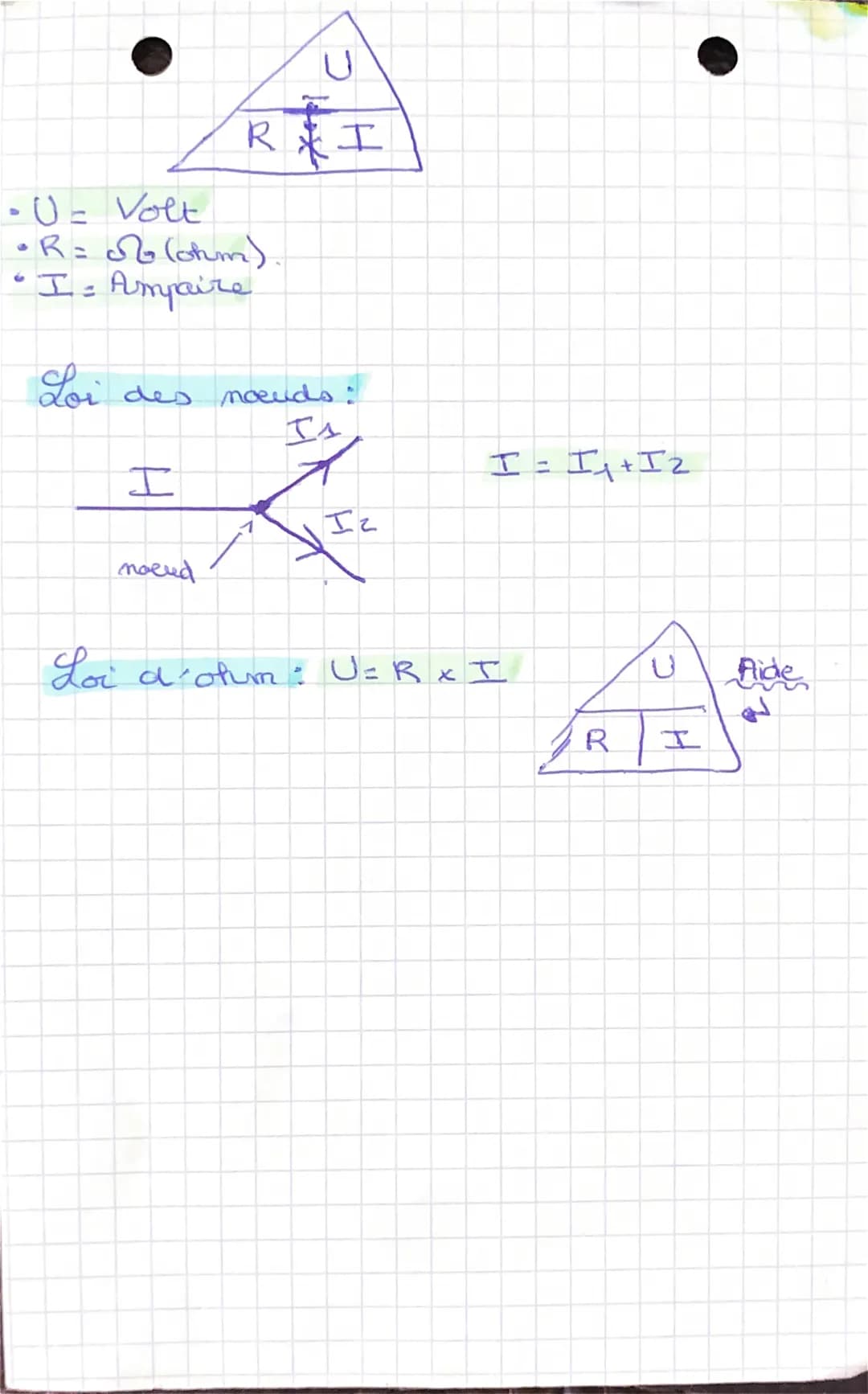

The page includes a diagram illustrating a node in a circuit with incoming and outgoing currents, helping to visualize Kirchhoff's current law.

Vocabulary: A node in an electrical circuit is a point where two or more circuit elements meet.

Lastly, the page provides a helpful mnemonic diagram for remembering the relationship between voltage (U), current (I), and resistance (R) in Ohm's law. This triangle diagram allows students to easily recall and manipulate the formula to solve for any of the three quantities.

Highlight: The Ohm's law triangle is a useful tool for quickly determining the correct formula to use when solving circuit problems.

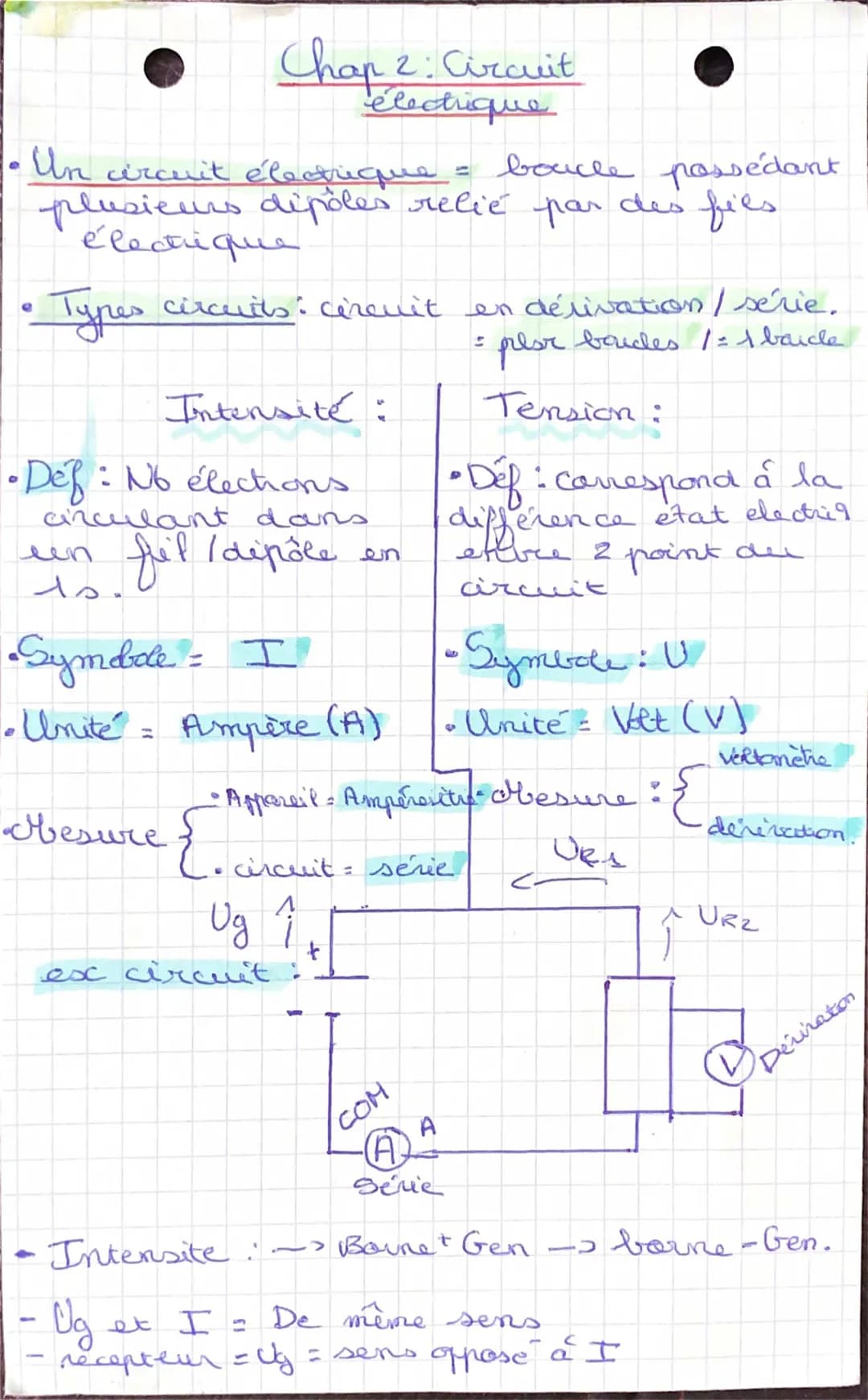

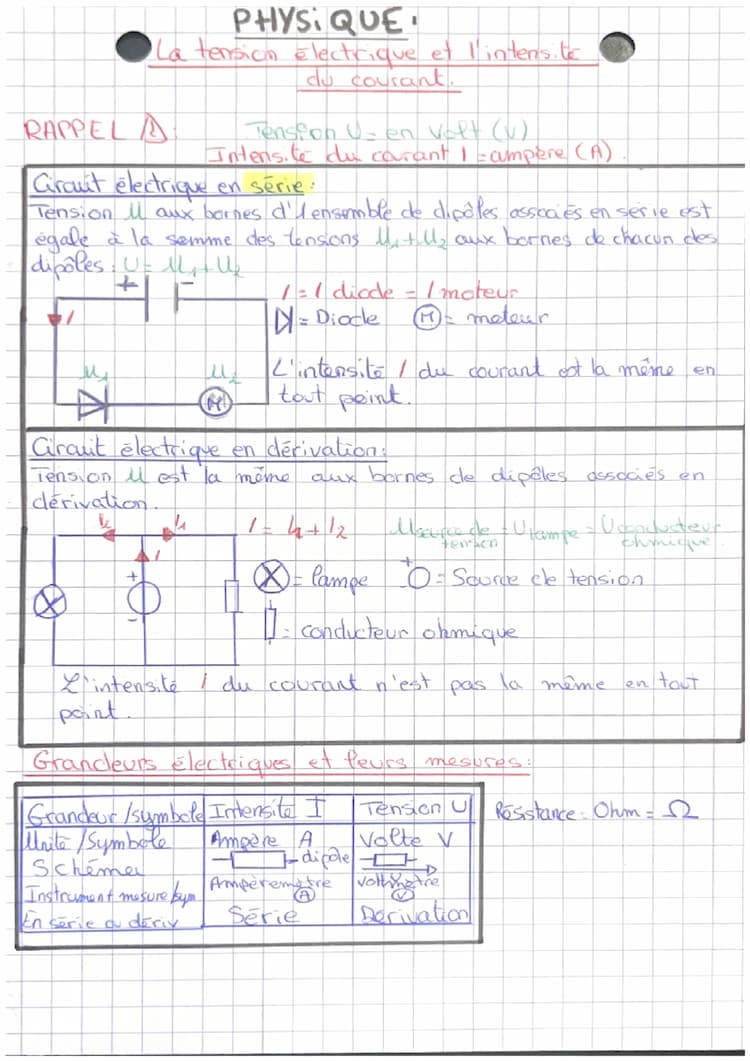

Chapter 2: Electrical Circuits

This page introduces the fundamental concepts of electrical circuits. An electrical circuit is defined as a closed loop containing multiple components connected by electrical wires. The two main types of circuits discussed are series circuits and parallel (derivation) circuits.

Definition: An electrical circuit is a closed path through which electric current can flow.

The page covers three key electrical quantities:

1. Voltage (Tension):
   • Represents the difference in electrical potential between two points
   • Symbol: U
   • Unit: Volt (V)
   • Measured using a voltmeter

Vocabulary: Voltage (tension) is the driving force that causes electric charges to move in a circuit.

2. Current (Intensité):
   • Refers to the flow of electric charge through a conductor
   • Symbol: I
   • Unit: Ampere (A)
   • Measured using an ammeter

Highlight: Current flows from the positive terminal to the negative terminal of a generator in the external circuit.

3. Resistance:
   • Opposes the flow of electric current in a circuit
   • Symbol: R
   • Unit: Ohm (Ω)

The page also includes diagrams illustrating the placement of ammeters and voltmeters in both series and parallel circuits.

Example: In a series circuit, the ammeter is connected in series with the components, while the voltmeter is connected in parallel across the component being measured.
