Meiosis Diagram for a Cell with 2n=4 Chromosomes

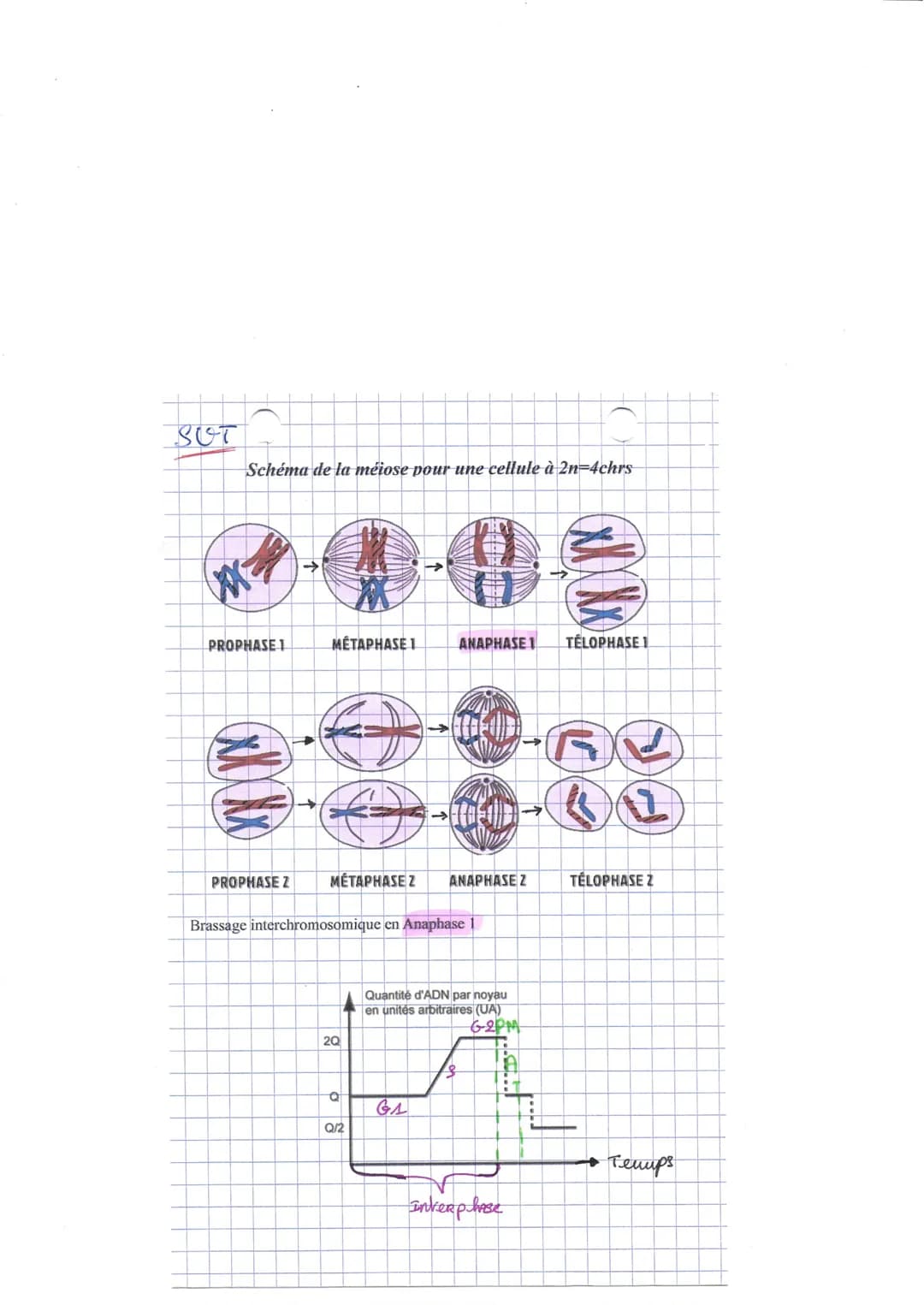

This page presents a comprehensive schéma meiose 2n=4, illustrating the intricate process of meiosis for a cell containing four chromosomes $2n=4$. The diagram is meticulously designed to showcase the various stages of meiotic division, emphasizing the reduction in chromosome number and the occurrence of genetic recombination.

The illustration begins with the cell in its initial state, containing four chromosomes arranged in two homologous pairs. As we progress through the diagram, we can observe the following key stages:

1. Prophase I: The chromosomes condense and homologous pairs align, forming tetrads. This stage is crucial for genetic recombination through crossing over.

2. Metaphase I: The tetrads align along the equatorial plane of the cell.

3. Anaphase I: Homologous chromosomes separate and move towards opposite poles of the cell. This stage is highlighted for its role in interchromosomal mixing.

4. Telophase I: The first meiotic division concludes, resulting in two daughter cells, each with half the original chromosome number.

5. Prophase II, Metaphase II, Anaphase II, and Telophase II: The second meiotic division proceeds, resembling mitosis, ultimately producing four haploid daughter cells.

Highlight: The diagram clearly shows the reduction of chromosome number from 2n to n during the first meiotic division, a key characteristic of meiosis known as the division réductionnelle.

Accompanying the meiosis diagram is a graph illustrating the quantité d'ADN (DNA quantity) per nucleus throughout the process. This graph provides valuable insights into the changes in DNA content during different stages of meiosis:

• The graph starts at a high point during interphase, representing the 2n DNA content.
• There's a sharp decrease after the first meiotic division, reflecting the halving of chromosome number.
• The DNA quantity remains constant during the second meiotic division, as chromosome number doesn't change further.

Vocabulary: Interphase - The stage between cell divisions where the cell grows and replicates its DNA in preparation for division.

Definition: Brassage interchromosomique - The process of genetic recombination between non-sister chromatids of homologous chromosomes, occurring during meiosis I and contributing to genetic diversity.

This comprehensive visual representation serves as an excellent educational tool for understanding the complex process of meiosis, particularly for cells with a 2n=4 chromosome configuration. It effectively demonstrates the reduction in chromosome number, the stages of genetic recombination, and the changes in DNA quantity throughout the meiotic process.
