RC Circuit Dynamics

This section covers the behavior of RC circuits during charging and discharging phases, focusing on differential equations and their solutions.

Definition: The RC time constant $τ = RC$ determines how quickly the circuit responds to changes.

Example: During charging, the capacitor voltage follows Uc = E$1-e^(-t/RC)$, where E is the source voltage.

Highlight: The discharge process follows an exponential decay pattern described by Uc = E×e^$-t/RC$.

The differential equations governing RC circuits are derived from Kirchhoff's laws and component relationships. For charging, the equation is RC(dUc/dt) + Uc = E, while for discharging, it becomes RC(dUc/dt) + Uc = 0. These equations yield exponential solutions that describe the voltage and current behavior over time.

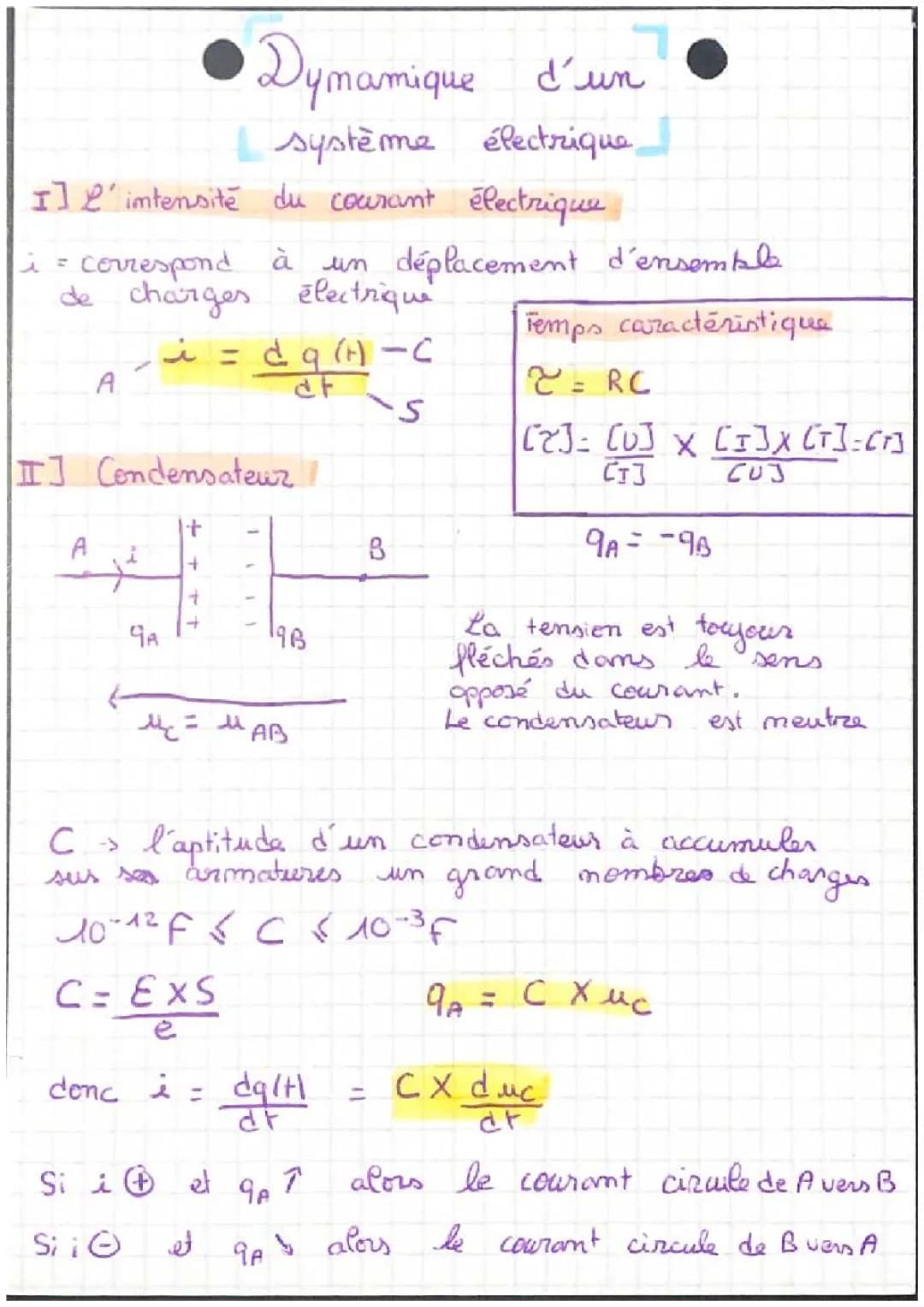

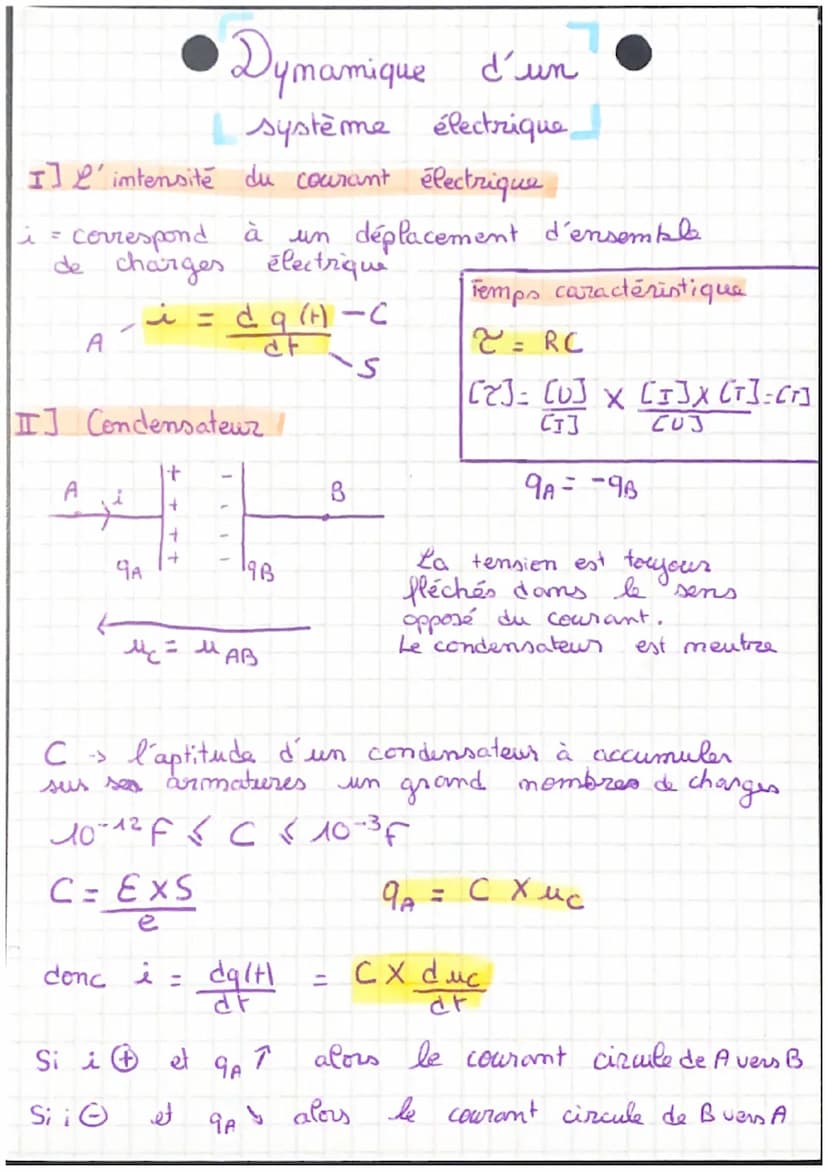

Electric Current and Capacitors

This section explores the fundamentals of electric current and capacitor behavior in circuits. The relationship between current, charge, and capacitance is examined in detail.

Definition: Electric current $i$ represents the organized movement of electrical charges through a conductor.

Vocabulary: Capacitance (C) - The ability of a capacitor to store electrical charge between its plates.

Example: When current flows from point A to B, the charge accumulation follows the relationship i = dq/dt.

Highlight: The capacitor's voltage is always oriented in the direction opposite to current flow.

The mathematical relationship between current and charge transfer is expressed through the derivative equation i = dq/dt. For capacitors, this relates to the fundamental equation Q = C × U, where C represents capacitance.
