Understanding Electrical Networks and Power Losses

This page delves into the intricacies of electrical networks, with a particular focus on the Joule effect and power losses during electricity transmission. The content is crucial for comprehending the challenges in distribution de l'électricité and the fonctionnement réseau électrique.

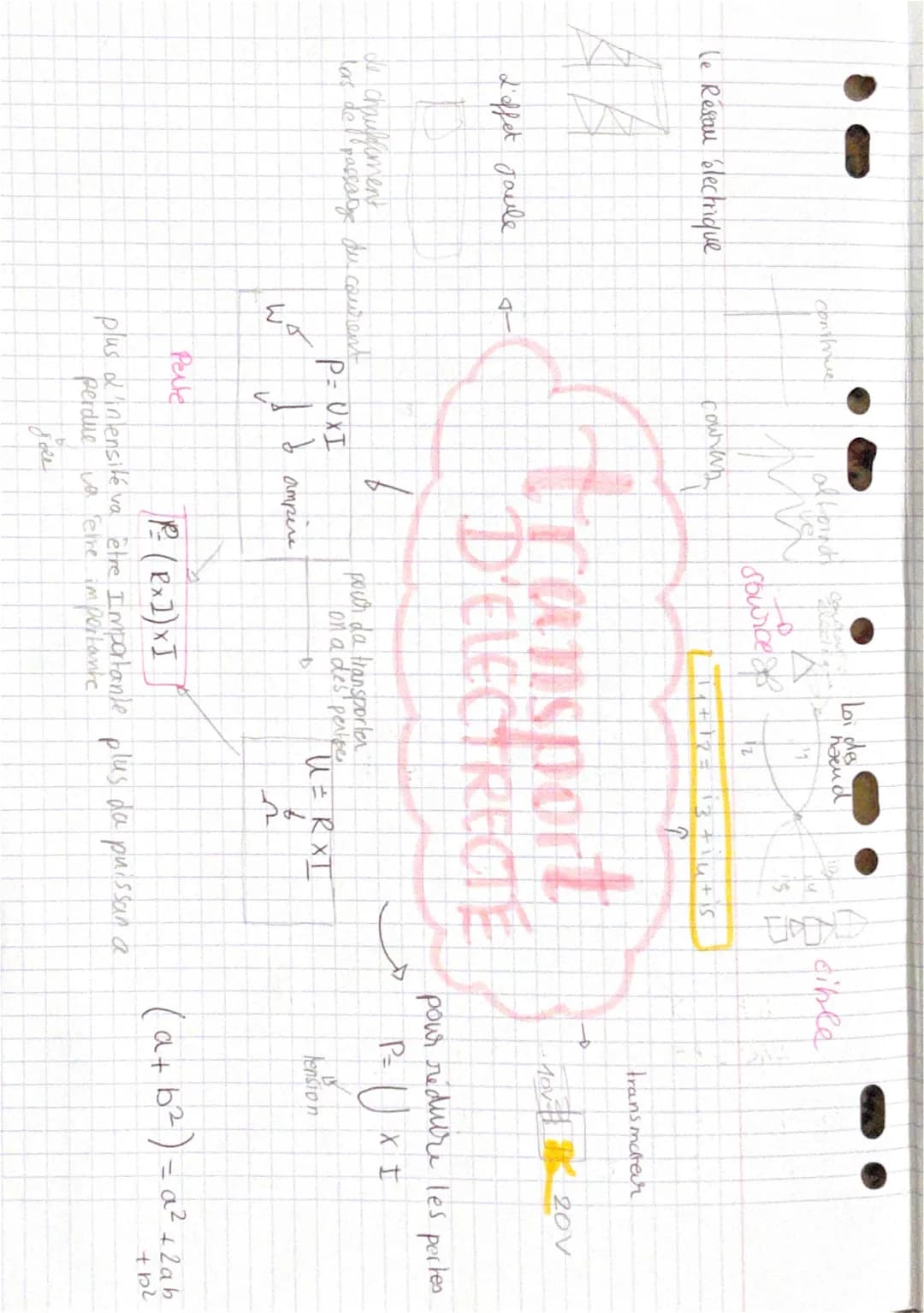

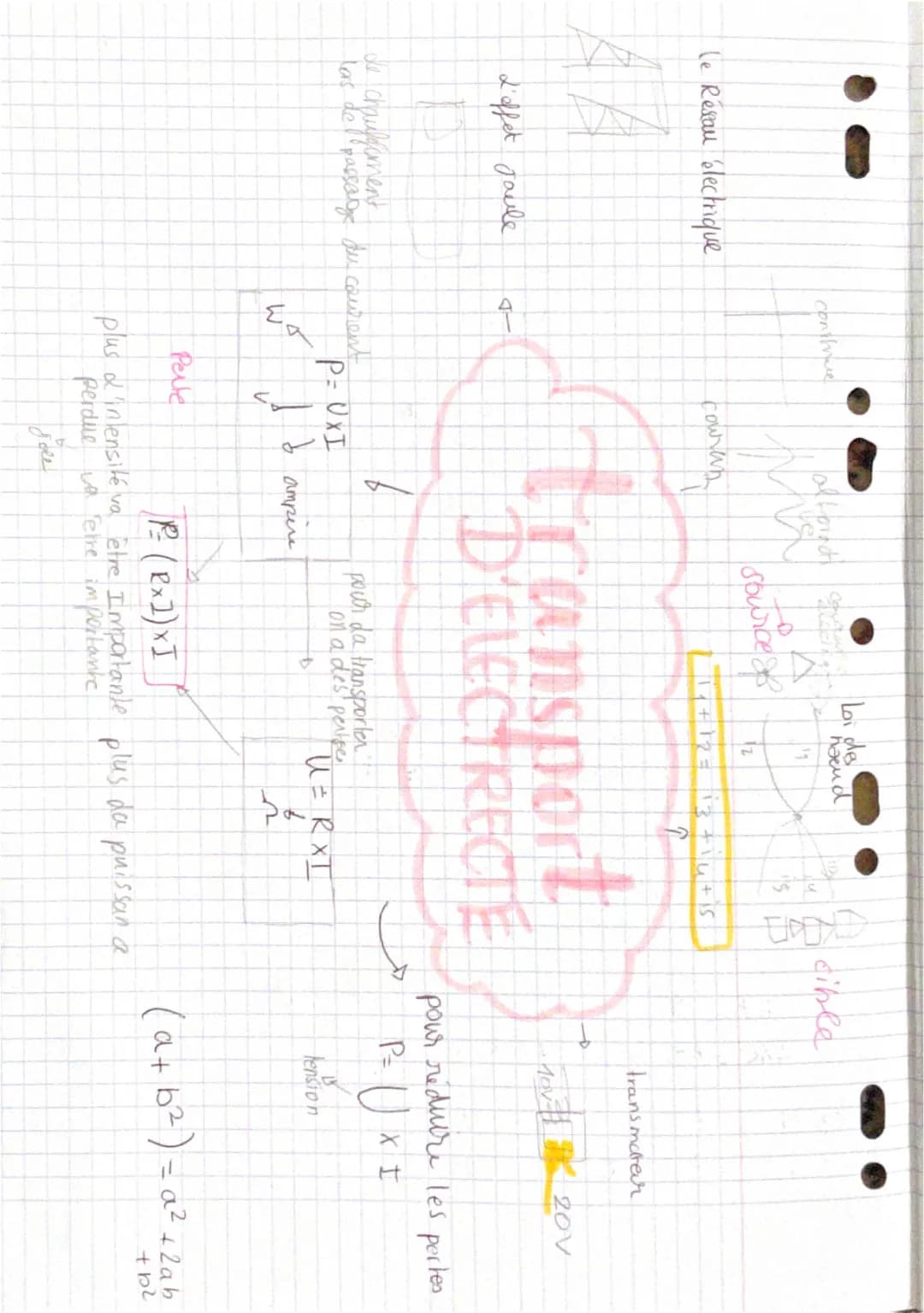

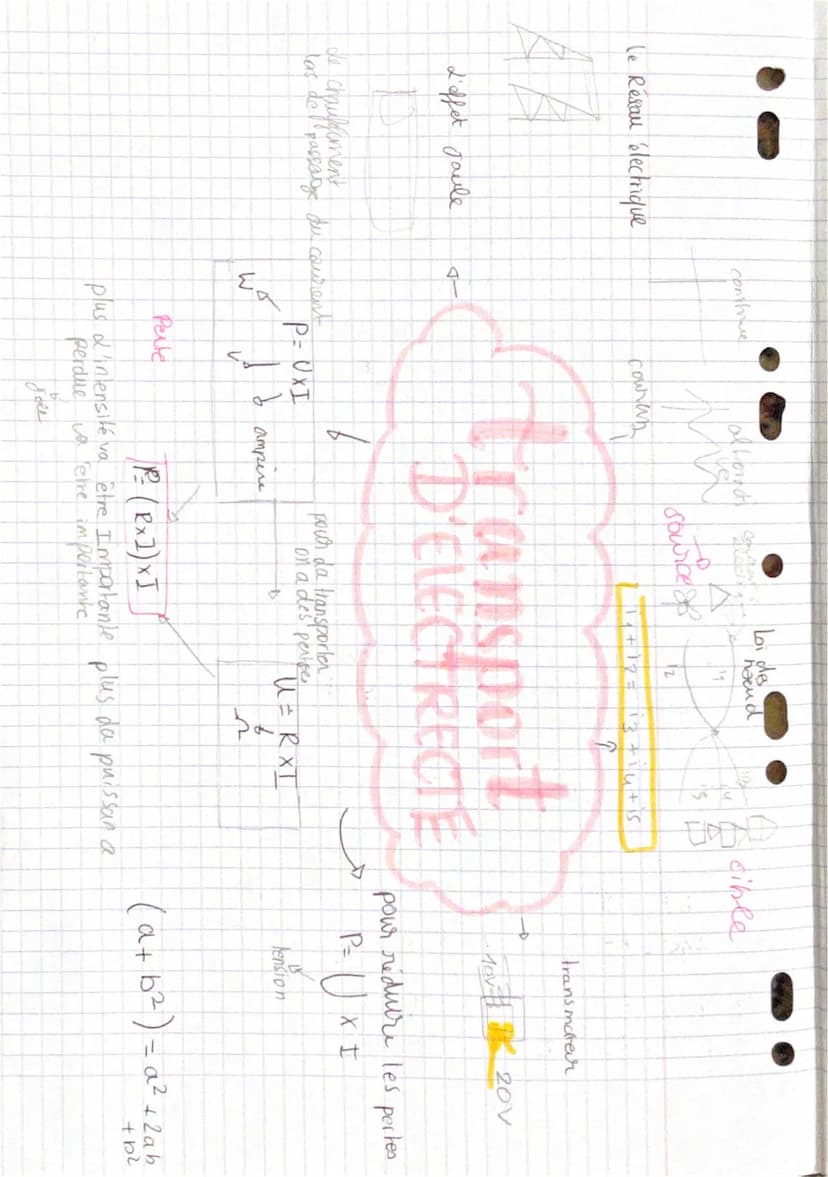

The document begins by introducing the concept of the Joule effect, which is fundamental to understanding power losses in electrical systems. It then proceeds to explain the relationships between current, voltage, and power using mathematical formulas.

Definition: The Joule effect refers to the phenomenon where electrical energy is converted into thermal energy as current flows through a conductor.

Key equations presented include:

• P = U × I (Power = Voltage × Current)
• U = R × I (Voltage = Resistance × Current)

The text emphasizes that power losses increase with higher current intensity. This principle is crucial for understanding why high voltage is used for long-distance power transmission.

Highlight: Higher current intensity leads to greater power losses during electricity transmission.

To illustrate the concept of power loss reduction, the document presents a comparison between transmitting power at 20V versus 220V. This example demonstrates how increasing voltage can significantly reduce power losses.

Example: Transmitting power at 220V instead of 20V can substantially reduce power losses in the electrical grid.

The page concludes with a mathematical expression, (a + b)² = a² + 2ab + b², which, while not directly related to electrical concepts, may be used to illustrate mathematical principles relevant to power calculations.

Vocabulary:

• Réseau électrique: Electrical network
• Effet Joule: Joule heating or resistive heating
• Perte: Loss (in this context, power loss)
• Tension: Voltage
• Intensité: Current intensity

This comprehensive overview provides a solid foundation for understanding the challenges and solutions in modern architecture des réseaux de distribution électrique and the importance of efficient power transmission in the réseau électrique France.
