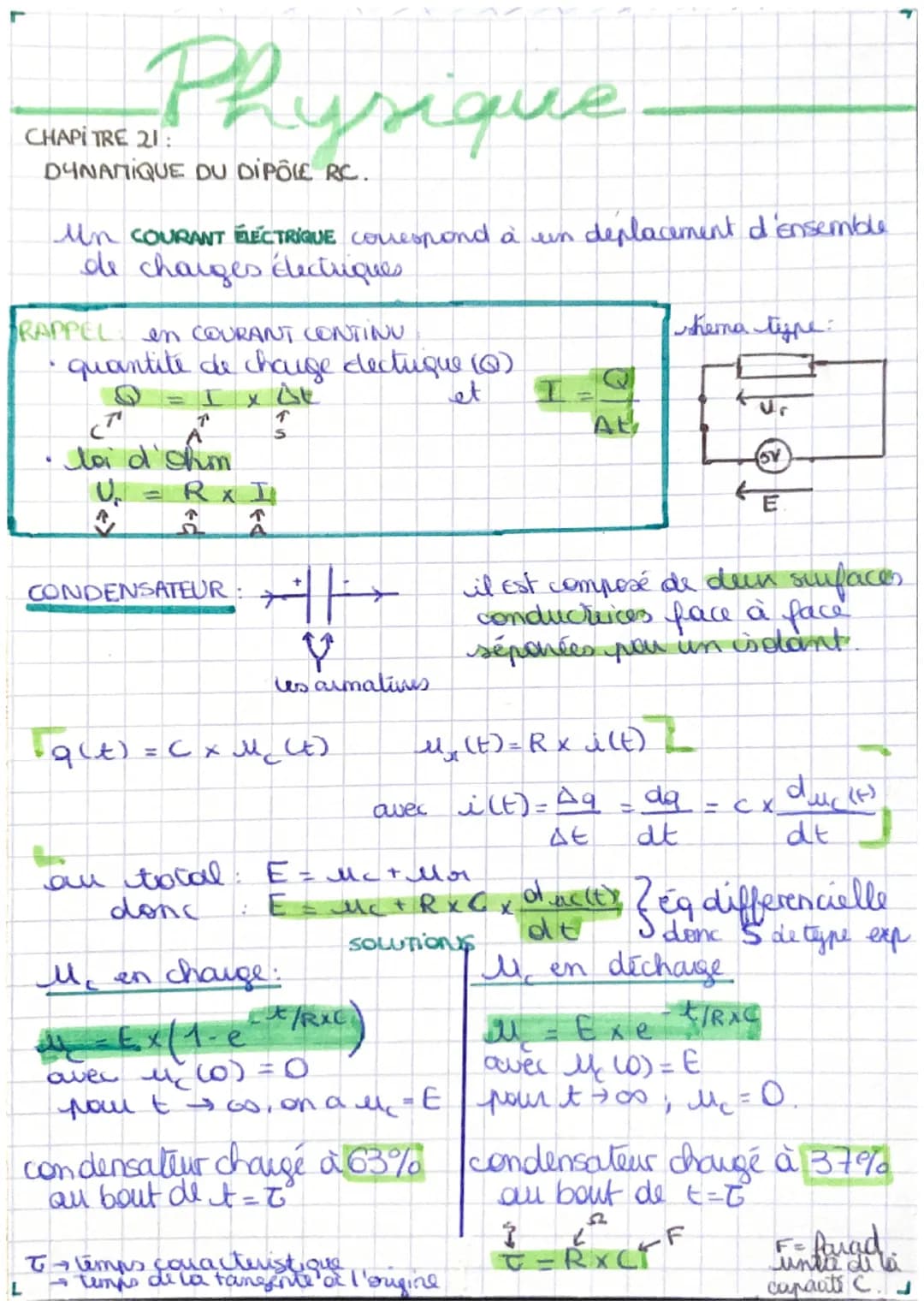

RC Circuit Dynamics

This comprehensive page introduces the fundamental concepts of RC circuit dynamics and capacitor behavior. The content explores both theoretical foundations and practical applications of RC circuits.

Definition: An electric current represents the collective movement of electric charges through a conductor.

Vocabulary:

• Capacitor (Condensateur): A component consisting of two conductive surfaces separated by an insulator
• Time Constant (τ): The characteristic time taken for the capacitor to reach 63% of its final charge

Example: In a charging scenario, the capacitor voltage follows the equation: u = E$1-e^(-t/RC)$, where E is the source voltage and RC is the time constant.

Highlight: The time constant τ = RC is a crucial parameter that determines how quickly the capacitor charges or discharges. At t = τ, the capacitor reaches approximately 63% of its final charge.

Quote: "Pour t→∞, on a u=E pour t∞s, uc = 0" (As time approaches infinity, the voltage approaches E, and when fully discharged, the capacitor voltage is 0)

The page details mathematical relationships governing RC circuits, including:

• Ohm's law applications
• Differential equations describing circuit behavior
• Charging and discharging equations
• The significance of the time constant in circuit analysis

Special attention is given to the exponential nature of charging and discharging processes, with clear mathematical expressions provided for both scenarios. The material emphasizes practical applications through graphical representations and real-world examples.
