Page 2: Vector Analysis of Charged Particle Motion

This page delves into the mathematical analysis of particle motion using vector calculus. It presents detailed derivations of acceleration, velocity, and position vectors.

Definition: The acceleration vector is determined using Newton's First Law: ΣF = ma.

Highlight: The velocity vector components are derived through integration of acceleration components.

Example: For a particle with initial horizontal velocity v0, the position vector components are calculated through double integration.

Page 3: Energy Considerations and Linear Accelerator Principles

The third page explores energy conservation and practical applications in particle acceleration.

Definition: The work done by electric force is given by W = qU, where U is the potential difference.

Highlight: In the absence of friction, mechanical energy is conserved $ΔEm = 0$.

Quote: "A linear accelerator is a device that accelerates charged particles in a straight line to produce reactions with matter."

Example: For horizontal plates, specific trajectory equations are provided, showing the relationship between x and y coordinates.

Page 4: Final Equations and Trajectory Analysis

The final page completes the mathematical analysis with comprehensive trajectory equations.

Definition: The trajectory equation relates y-position to x-position through quadratic functions.

Highlight: Final equations incorporate initial velocity, charge, mass, and electric field strength to describe complete particle motion.

Example: The equation y(x) = $-qE/2mv₀²$x² provides the parabolic path of the charged particle.

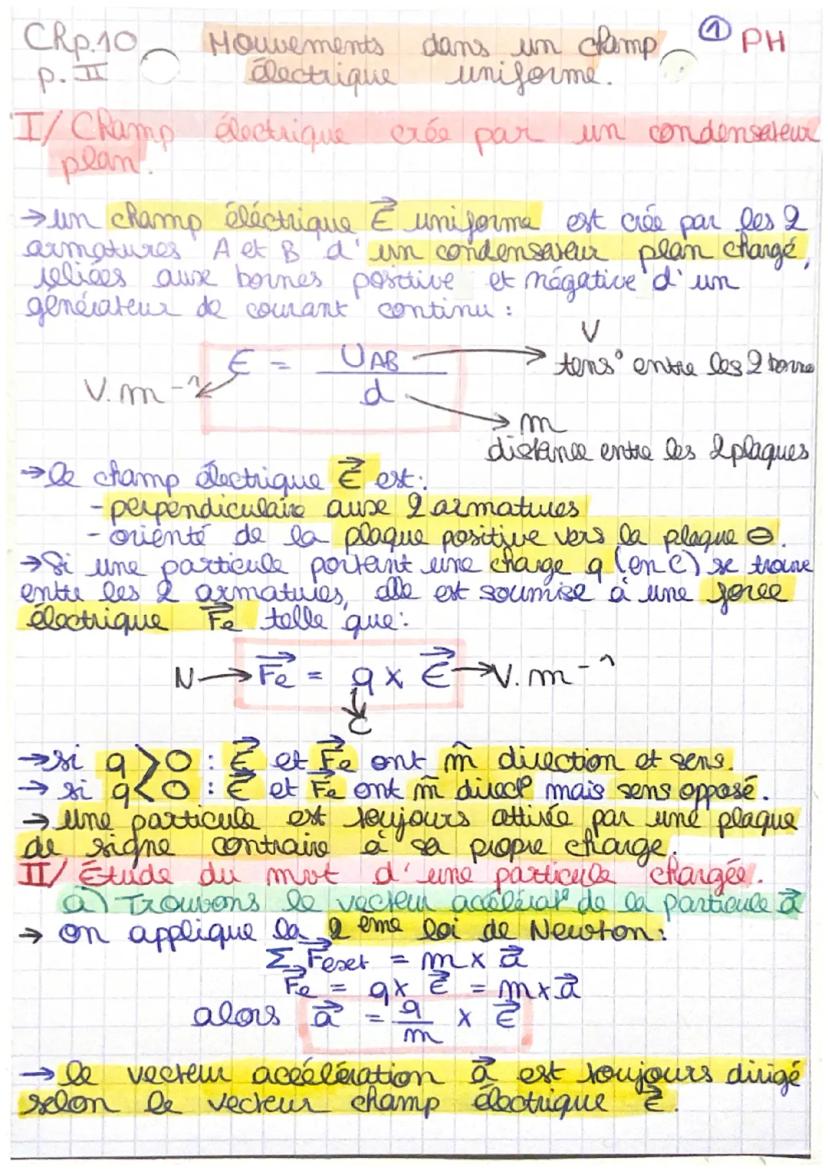

Page 1: Electric Field Created by a Parallel Plate Capacitor

The first page introduces the fundamental concepts of electric fields in parallel plate capacitors. The electric field is created between two plates (A and B) of a charged parallel plate capacitor connected to a DC power source.

Definition: A uniform electric field is created between two plates of a parallel plate capacitor, with field lines perpendicular to the plates.

Highlight: The electric field direction is from the positive plate to the negative plate.

Example: For a particle with charge q (in Coulombs) between the plates, it experiences an electric force Fe = qE, where E is the electric field strength.

Vocabulary: UAB represents the potential difference between plates, and d is the distance between plates.
