Electrochemical Cells (Batteries)

This page focuses on the structure and functioning of electrochemical cells, commonly known as batteries. It explains how these devices convert chemical energy into electrical energy through spontaneous redox reactions.

Definition: An electrochemical cell consists of two separate compartments (half-cells), each containing an [oxidation-reduction](https://knowunity.fr/knows/ens-scient-reaction-doxydo-reduction-808cf1ee-07ab-4074-9b80-9c3fc4a4dbea?utm_source=seo_link) couple, connected by a salt bridge.

The key components of an electrochemical cell are described:

1. Two distinct compartments (half-cells)
2. Oxidation-reduction couples in each compartment
3. A salt bridge connecting the compartments
4. Electrodes (plates) for electron transfer

Example: A zinc-copper cell is presented, with zinc as the anode (where oxidation occurs) and copper as the cathode (where reduction takes place).

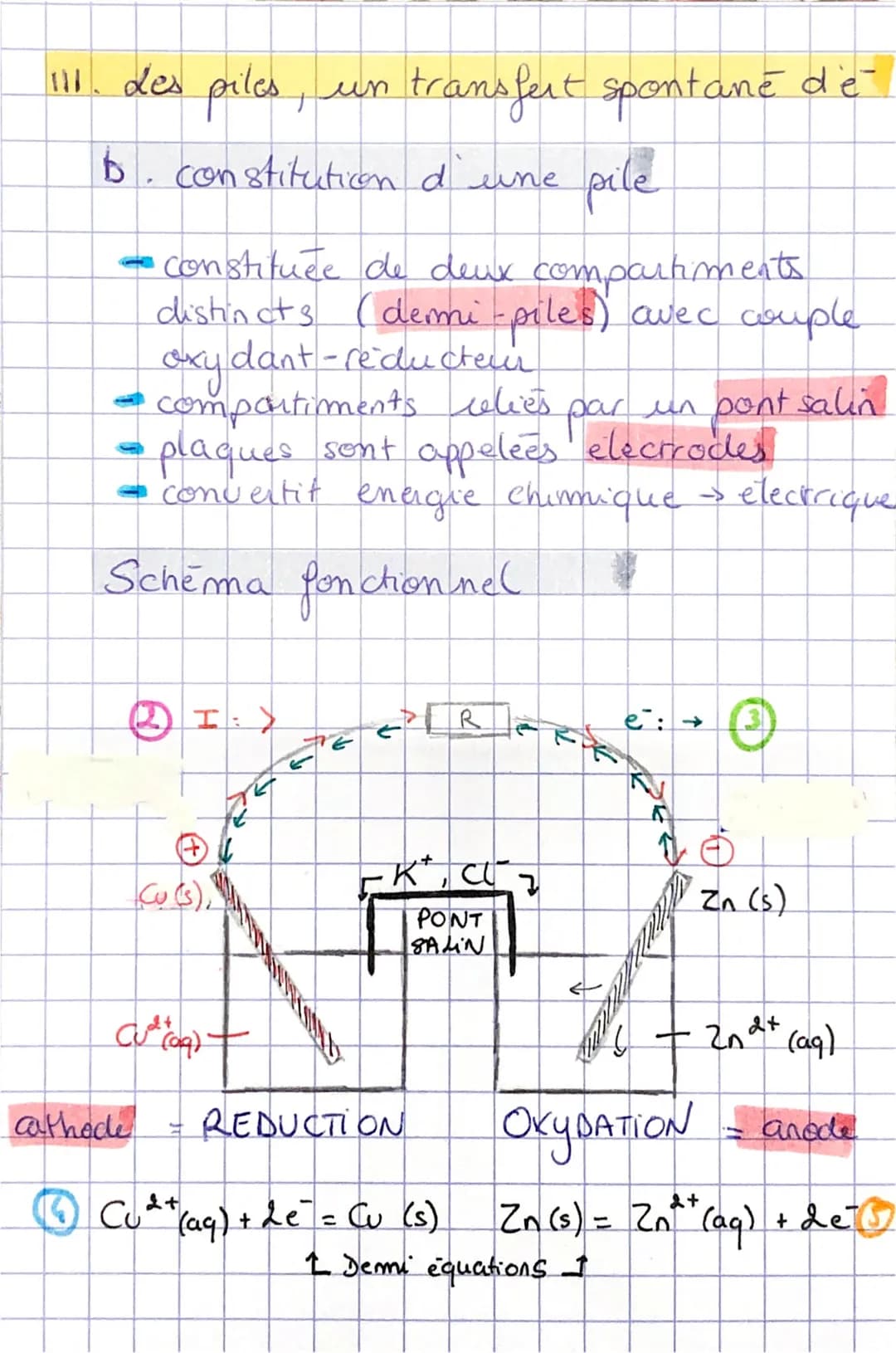

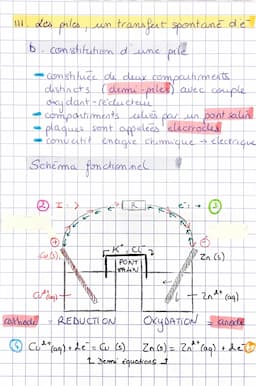

The page includes a functional diagram of a zinc-copper cell, illustrating the spontaneous transfer of electrons from zinc to copper ions. This exemplifies the fonctionnement d'une pile électrochimique.

Highlight: Understanding the schema d'une pile electrique and its components is crucial for grasping how batteries generate electrical current through chemical reactions.

The half-reactions occurring at each electrode are provided:

• Oxidation (anode): Zn(s) → Zn²⁺(aq) + 2e⁻
• Reduction (cathode): Cu²⁺(aq) + 2e⁻ → Cu(s)

This information is essential for solving problems related to evolution spontanée d'un système chimique pile.

Current and Electron Flow in Electrochemical Cells

This final page delves into the details of current flow and electron circulation in electrochemical cells, providing a quantitative approach to understanding battery function.

The direction of current flow and electron circulation is explained in relation to the half-reactions occurring at each electrode. This information is crucial for analyzing the fonctionnement d'une pile in depth.

Highlight: The current flows from the cathode to the anode in the external circuit, while electrons flow in the opposite direction, from anode to cathode.

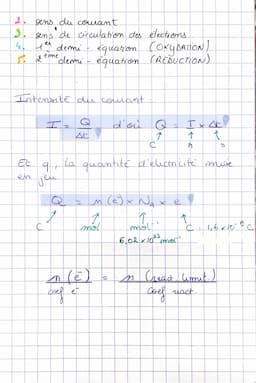

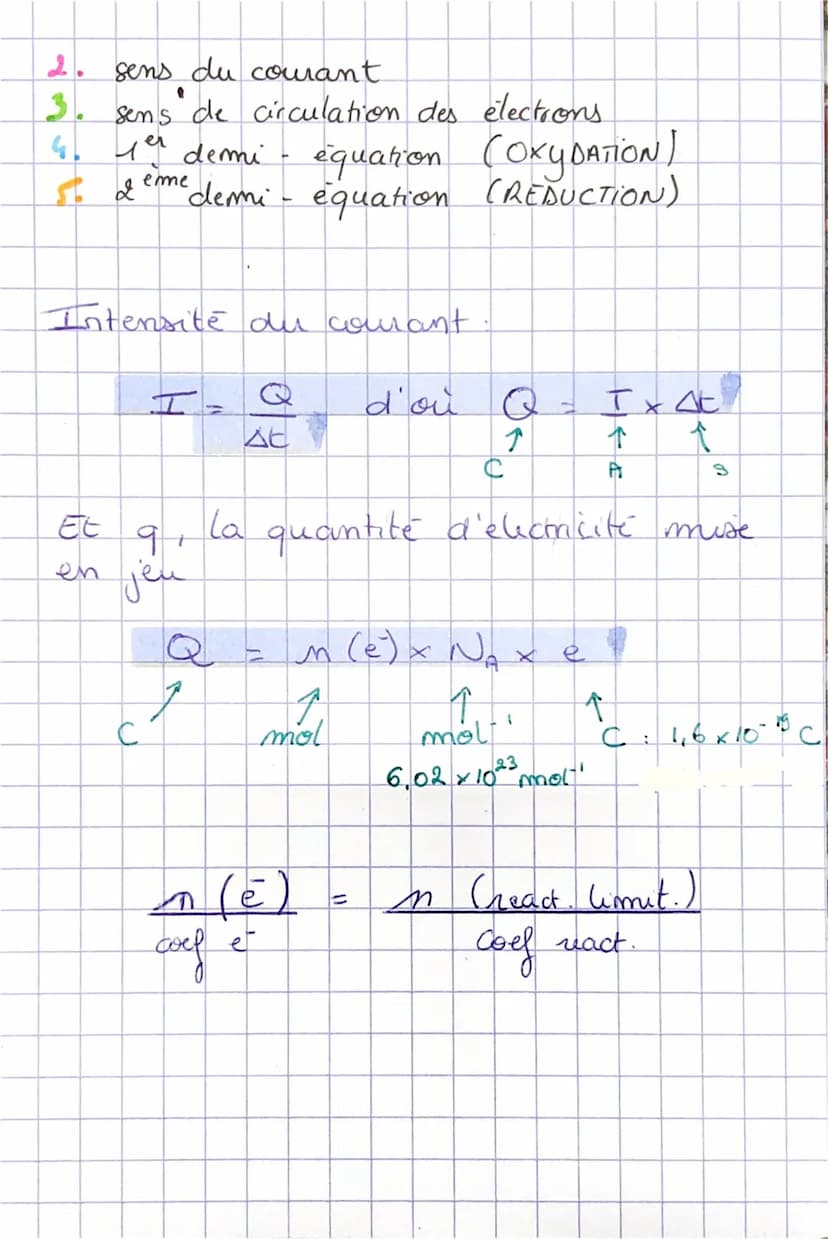

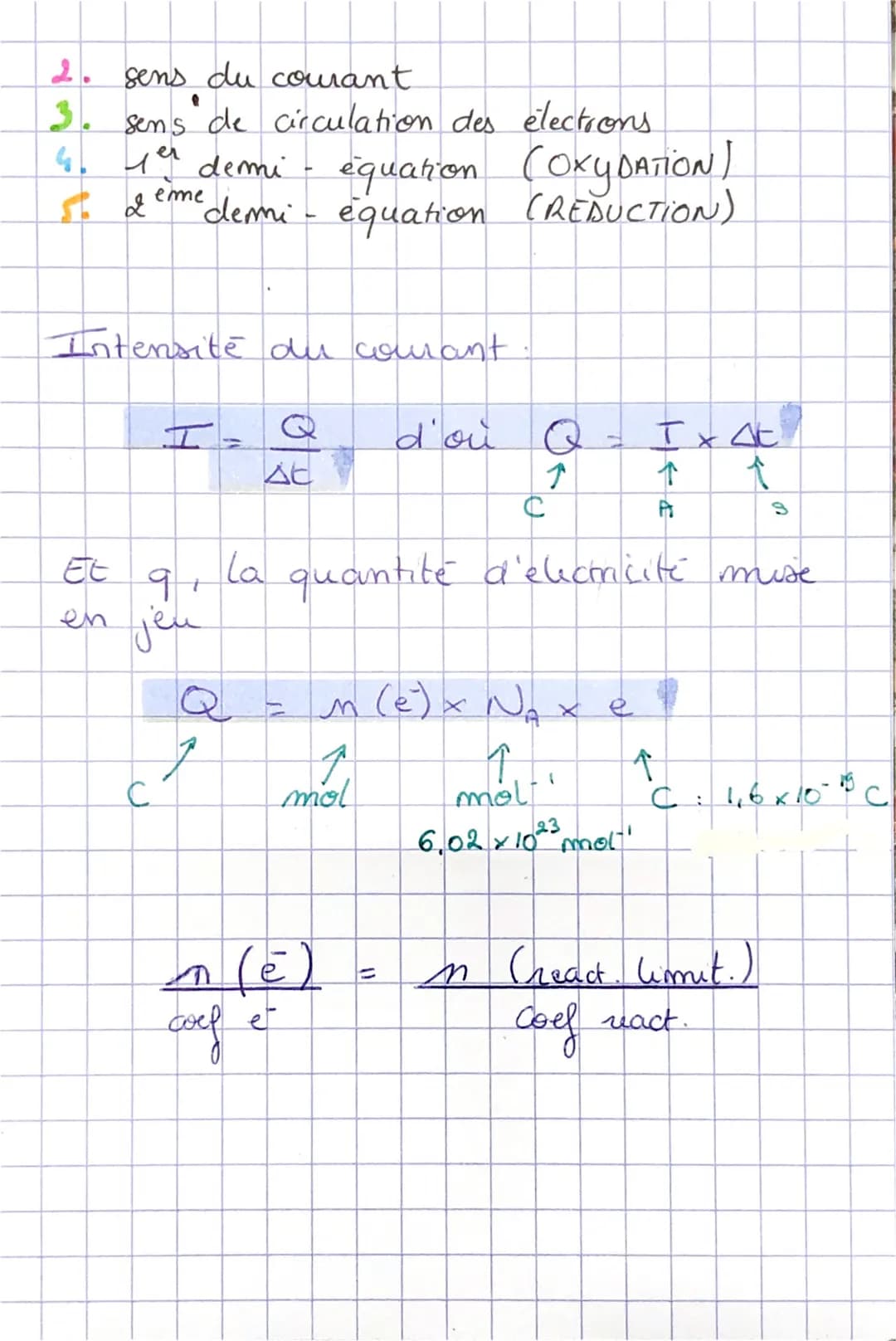

The page introduces equations for calculating the quantity of electricity involved in the cell reaction:

Q = I × Δt = n(e⁻) × NA × e

Where:

• Q is the quantity of electricity
• I is the current intensity
• Δt is the time interval
• n(e⁻) is the number of moles of electrons
• NA is Avogadro's number
• e is the elementary charge

Example: For a reaction involving the transfer of 2 electrons per atom, the quantity of electricity can be calculated using the above formula, considering the stoichiometric coefficients of the reaction.

This quantitative approach allows for the calculation of a battery's capacity, which is essential for understanding the capacité d'une pile formule.

Vocabulary: The limiting reagent in an electrochemical cell determines the maximum amount of charge that can be transferred, and thus the capacity of the battery.

Understanding these concepts is crucial for solving advanced problems related to evolution spontanée d'un système chimique labolycee and preparing for evolution spontanée d'un système chimique sujet bac.
