Diagramme Pieuvre Explanation

The second page introduces the diagramme pieuvre technologie, another crucial tool in technology education. This diagram, also known as the octopus diagram, is used to visualize the relationships between a system and its environment.

Definition: The pieuvre diagram illustrates the various functions and interactions of a technical system with its surroundings.

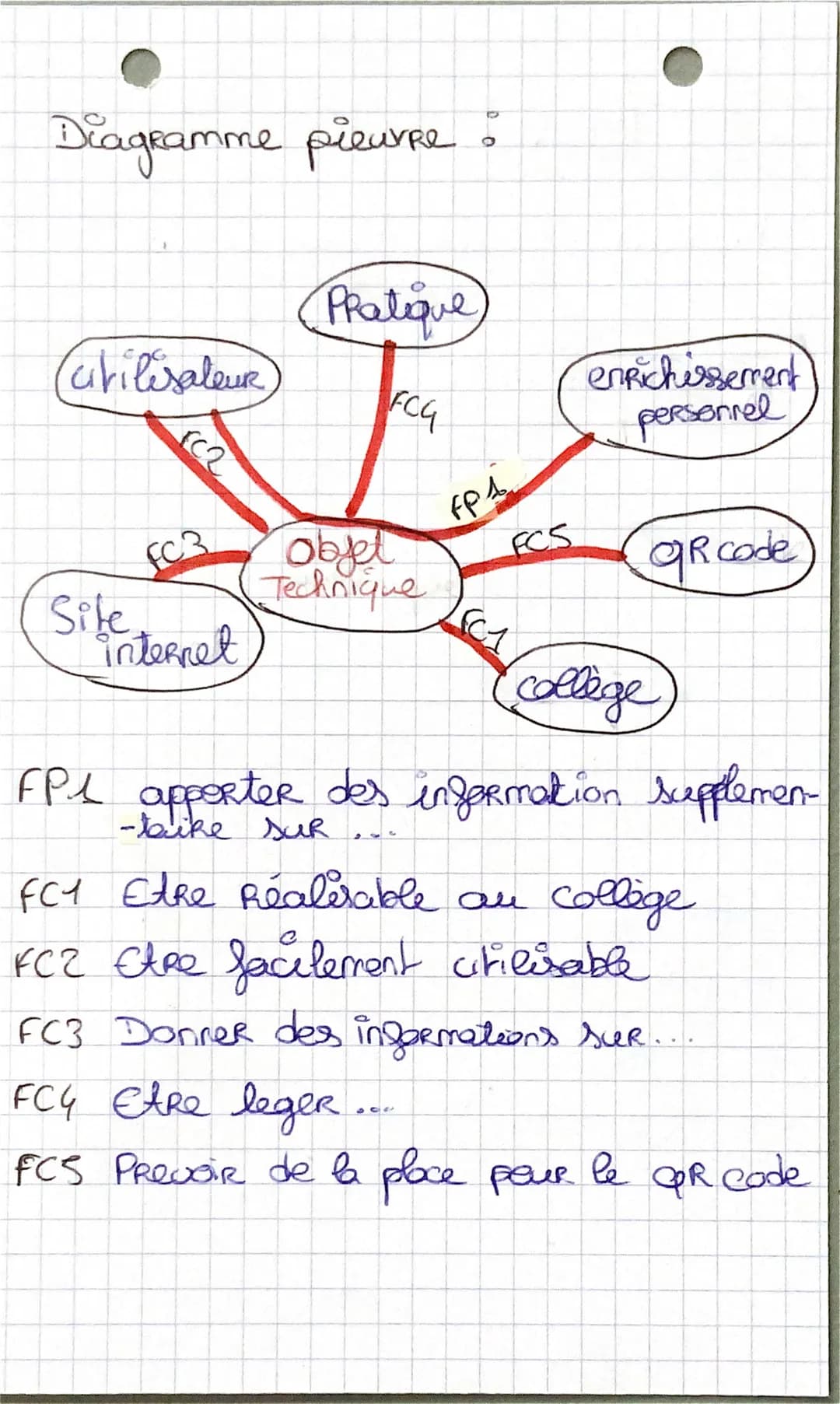

The diagram presented focuses on a technical object related to a website and QR code, highlighting several functions:

1. FP1: Apporter des informations supplémentaires sur... (Provide additional information on...)
2. FC1: Être réalisable au collège (Be feasible at school)
3. FC2: Être facilement utilisable (Be easy to use)
4. FC3: Donner des informations sur... (Provide information on...)
5. FC4: Être léger... (Be lightweight...)
6. FC5: Prévoir de la place pour le QR code (Provide space for the QR code)

Vocabulary:

• FP: Fonction Principale (Main Function)
• FC: Fonction Contrainte (Constraint Function)

Example: This exemple diagramme pieuvre could be used in a sujet brevet technologie corrigé ferme urbaine to analyze the relationships between an urban farm system and its environment.

The diagram also shows interactions with various elements such as the user, website, college, and QR code, demonstrating the system's complexity and interconnectedness.

Highlight: Understanding and creating pieuvre diagrams is essential for students preparing for the brevet BLANC Technologie robot tondeuse corrigé or similar technology assessments.

Diagramme Bête à Corne Analysis

The first page introduces the exercice bête à corne Technologie 3ème, a fundamental tool in technology education. This diagram helps students analyze the purpose and users of a technical system.

Definition: The "bête à corne" diagram is a visual representation used to define the primary function of a product or system by answering three key questions.

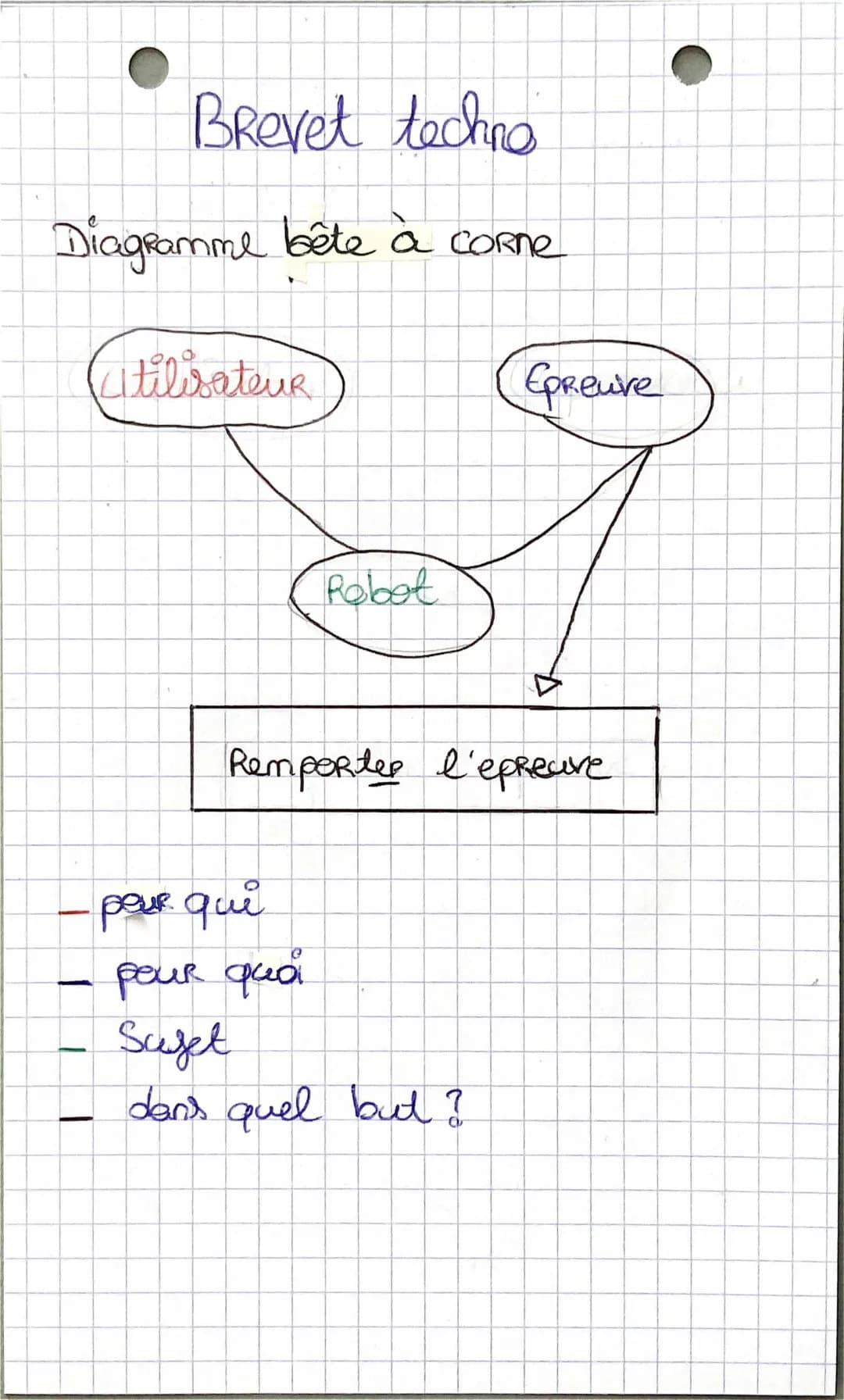

The diagram presented focuses on a robot designed for a competition, addressing the following questions:

1. À qui rend-il service ? (Who does it serve?) - Utilisateur (User)
2. Sur quoi agit-il ? (What does it act on?) - Épreuve (Challenge)
3. Dans quel but ? (For what purpose?) - Remporter l'épreuve (To win the challenge)

Highlight: This diagram is particularly useful for students to quickly grasp the core purpose and stakeholders of a technical system, which is essential for sujet brevet Technologie organigramme preparation.
